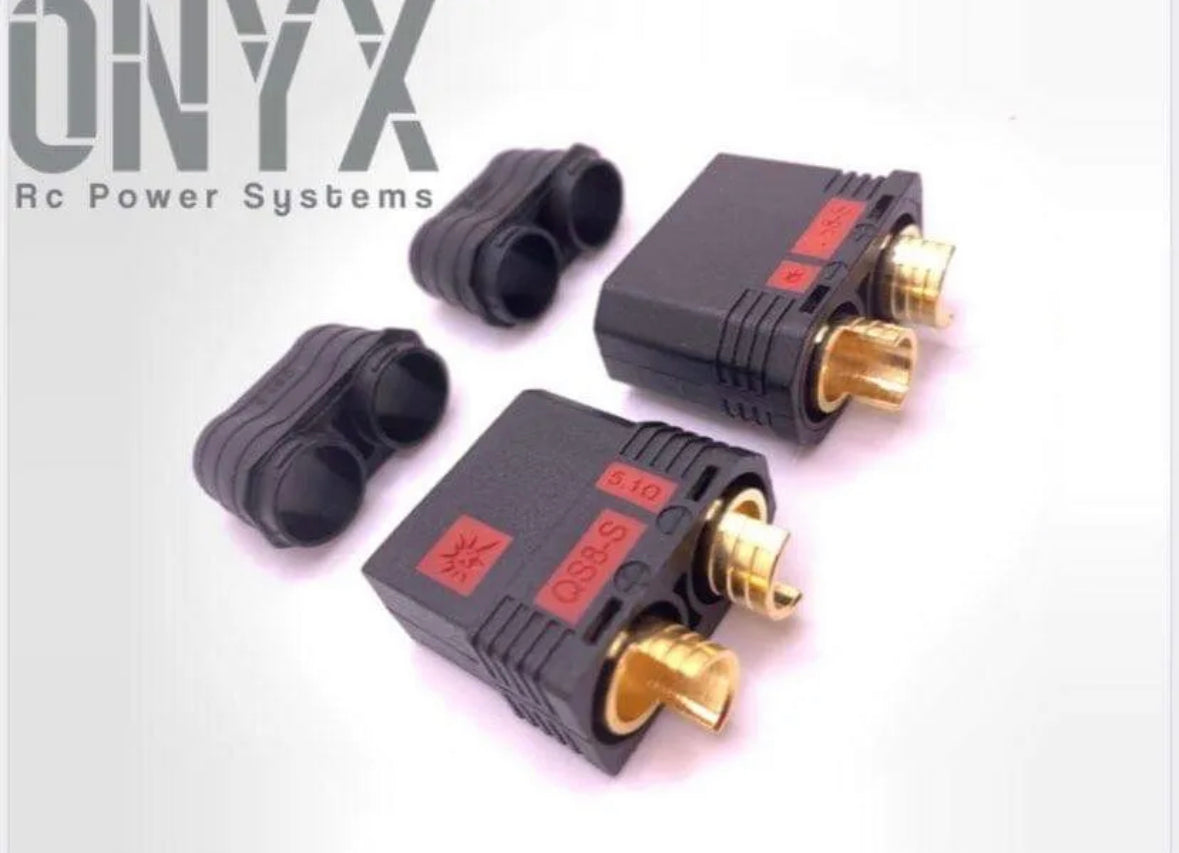

Q/S8 Connector Set Genuine 600amps Plus (2 Pair) 2male 2 female

QS8 RC Lipo Anti Spark High Current Connector Pair - Male & Female. Uk Stock.

QS8 Anti-Spark Connectors are a high quality, high current connector that is perfect for high voltage applications. Not only is the connector capable of handling spikes in excess of 600 amps, the design provides an anti-spark connection that eliminates the dreaded POP when you plug in the battery helping to extend the life of the connector. High voltage bashers, speed run enthusiasts and pilots of all disciplines can benefit from this advanced connector technology.

The QS8 connector features 8mm bullets that can accommodate wire up to 6awg, inside a heavy duty nylon/fiber composite housing. Plus, an included plastic wire cap covers the soldered connection and eliminates the need for heat shrink to create an incredibly clean installation that works well, looks great and is easy to manage.

Features:

Anti-Spark Technology Increases Lifespan of Connector

300A Constant/600A Peak Current Rating

8.0mm Gold Plated Brass Bullet

Great for all High Voltage Applications

Nylon/Fiber Composite Housing

Package Includes One Female Connector, One Male Connector & End Cap

Specifications:

Connector Diameter: 8.00mm

Metal Material: Gold Plated Brass

Plastic Material: Fiber Nylon Comp

Flame retardant rating: UL94 V0

Temperature Range: 200C Max

Continuous Current: 300A

Peak Current: 600A+

Weight: 41g (Male+Female Set)

Total Length: Approx 70mm (Male & Female w/End Cap)

Width: 29.5mm

Max Wire Gauge: 6awg

Includes:

(1) QS8 Female Anti-Spark Connector

(1) QS8 Male
